Centrifugal Fans

General Description

Production Range

This fan range employs housings with square-shaped outlet and sizes from the R20 normal number series, in accordance to AMCA Standard 99-0098 76 and to DIN 323. The RDH range is made of high efficiency, double width, double inlet centrifugal fans with backward inclined blades. Volume flow rate from 600 m3/h to 150.000 m3/h Total pressure up to 3500 Pa. 16 sizes from 180 up to 1000 mm wheel diameter.

Construction versions

RDH fans are available in the following versions:

• Version L: 180 - 560
• Version R: 180 - 710
• Version K: 200 - 1000
• Version K1: 315 - 900
• Version K2: 500 - 1000

Twin fan versions

Where a limited fan height is required, RDH fans are available also in double or twin fan versions, with two double inlet impellers on a common shaft, supported by three or four bearings. These versions are identified by the G2 prefix. Double fans are available in the following sizes:

• Version G2K: 250 - 1000
• Version G2K2: 250 - 1000



Retrovent - the efficient fan technology with scroll casing and airfoil blades.

• Single inlet for belt drive
• Various series with light, medium and heavy duty bearings
• Bearing in the airstream on separate bearing support pedestal out of the airstream
• Impeller with forwards curved blades made of galvanised sheet steel (Series ASH)
• Impeller with backward curved blades, welded and coated (series RSH)
• Impeller with backward hollow section true aerofoil blades. welded and coated (Series RER)
• Flow rate up to 150,000 m3/h
• Pressure up to 3,500 Pa

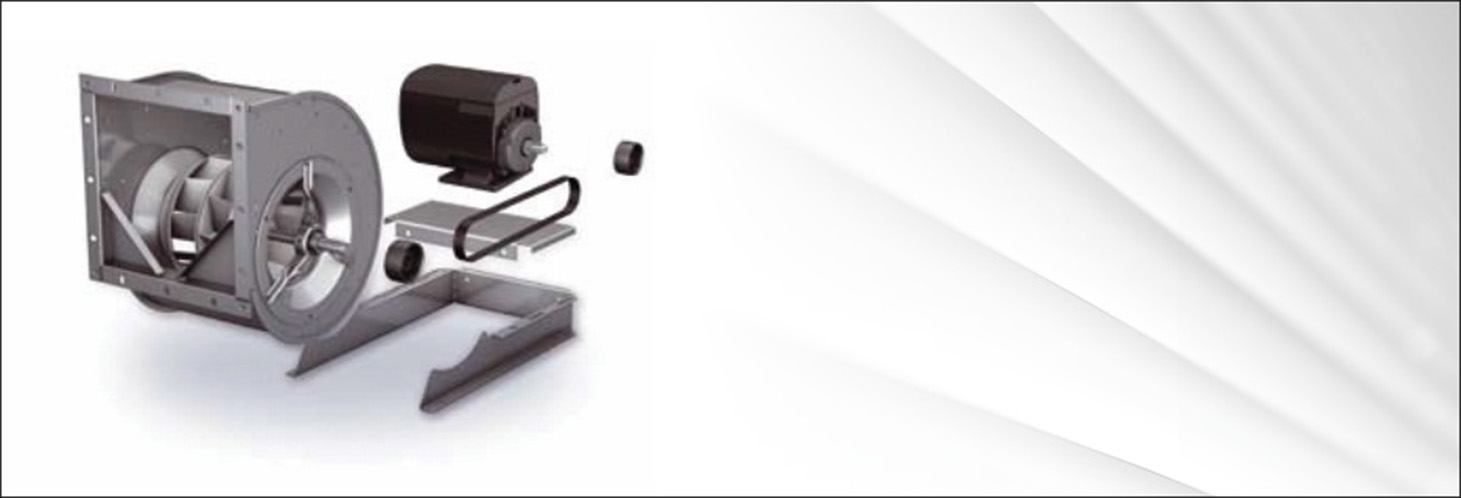

A system that saves space, time, and money - in an air handling unit or any other application! The compact base frame offers decisive benefits.

• The frame lengths have been optimised and adjusted for the casing position and motor installation height to achieve the smallest possible overall height and length
• Precise and optimised coordination of all components, all the way through to installation, adjustment and testing
